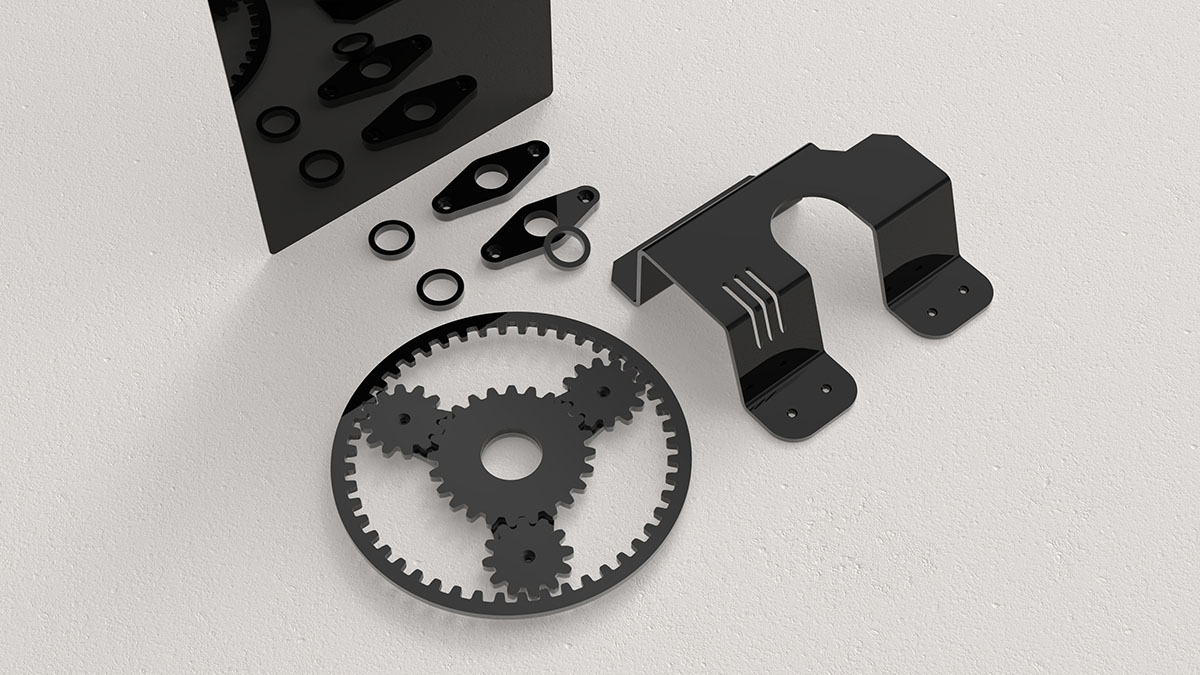

PA6 (Nylon)

Plastic

PA6, also known as Nylon 6, is a strong, tough, and versatile engineering polymer with excellent mechanical properties. The material combines high impact resistance, wear resistance, and good damping properties, making it widely used in mechanical engineering, automotive, and technical industries. PA6 is frequently used for sliding or wear components and is available in multiple variants, with or without fillers.
Well-known trade names of PA6 include Ertalon® 6 SA, Sustamid® 6, Tecamid® 6, and Nylatron® (with fillers). These grades are used worldwide for load-bearing components with a long service life.

Laser cutting
Milling

Calculate price directly

Properties of PA6

High mechanical strength and stiffness
Excellent wear resistance, even under friction and sliding loads
Good damping properties and noise reduction
High impact resistance, even at low temperatures
Good chemical resistance to oils, fats, and fuels
Reasonable dimensional stability (note moisture absorption)
Good machinability and thermoformability
Available in glass- or molybdenum-filled variants
Food-safe variants available (FDA / EU)

Thanks to these properties, PA6 is an excellent choice for sliding and dynamically loaded parts in various industrial applications.

Datasheet Title

Technical properties of PA6

Download datasheet

Download thickness

Product information and operations

Thickness	Dimensions	Color
0.5 mm	2000x1000 mm	Black
0.8 mm	2000x1000 mm	Black
1 mm	2000x1000 mm	Black Natural
2 mm	2000x1000 mm	Black Natural
3 mm	2000x1000 mm	Black Natural
4 mm	2000x1000 mm	Black Natural
5 mm	2000x1000 mm	Black Natural
6 mm	2000x1000 mm	Black Natural
8 mm	2550x1275 mm	Black Natural
10 mm	2550x1275 mm	Black Natural
12 mm	2550x1275 mm	Black Natural
15 mm	2000x1000 mm	Black Natural
16 mm	2550x1275 mm	Black Natural
20 mm	2550x1275 mm	Black Natural
25 mm	2550x1275 mm	Black Natural
30 mm	2550x1275 mm	Black Natural
35 mm	2550x1275 mm	Black Natural
40 mm	2550x1275 mm	Black Natural

Technical properties

General

Specific Gravity 1,14 g/cm³

Moisture Absorption under Standard Climate 3,5 %

Flammability HB

Specific Heat Capacity 1,7 kj/Kg°C

Temperature Range

Minimum Service Temperature -40°C

Maximum Service Temperature +80°C

Mechanical

Tensile Strength 80 N/mm

Elongation at Break 30 %

E-Modulus 3000 N/mm²

Flexural Strength 130 N/mm²

Impact Strength 3 Charpy

Shore or Ball Indentation Hardness 82 Shore °D

Coefficient of Friction 0,5

Electrical

Relative Permittivity (Dielectric Constant) 3,7 / 100 Hz

Dielectric Loss Factor 0,0027 tan(δ) x10⁻³

Volume Resistivity >10 Ω cm

Surface Resistivity >10 Ω

Comparative Tracking Index (CTI) >600 KC

Dielectric Strength 20 kV/mm

Thermal

Crystalline Melting Point 220 °C

Thermal Conductivity 0,23 W/m°K

Coefficient of Linear Thermal Expansion 0,07 mm/m°C

Continuous Service Temperature (unloaded) -40 / 80 °C

Maximum Short-Term Service Temperature 160 °C

Heat Deflection Temperature (HDT) 95 °C

Applications of PA6

Plain bearings and guides in machinery

Gears and chain guides

Wear plates and impact strips

Housings and structural components

Conveyor rollers and wheels

Seals and guide blocks

Components in the food industry

Technical parts in automotive and agricultural equipment

Made with CutWise

Frequently Asked Questions about PA6

What is the difference between PA6 and PA66?

PA6 has slightly lower crystallinity than PA66, making it tougher but less dimensionally stable. PA66 is stiffer and offers somewhat higher heat resistance.

Is PA6 suitable for food applications?

Yes, natural-color grades of PA6 are often FDA- and EU-compliant and suitable for food-processing use.

How well does PA6 handle moisture?

PA6 absorbs relatively high moisture (up to ~1.5%), which affects dimensional stability. For tight-tolerance parts, drying or an alternative like POM is recommended.

Is PA6 easy to machine?

Yes, PA6 machines very well by milling, turning, and drilling. It produces good chips and is ideal for secondary finishing.

Can PA6 be used outdoors?

PA6 has limited UV resistance. For outdoor use, UV-stabilized or black-pigmented grades are recommended.

What fillers are available for PA6?

Available variants include glass-filled (for higher stiffness), molybdenum disulfide-filled (for improved sliding), or oil-impregnated for self-lubrication.

Is PA6 suitable for dynamic loading?

Absolutely, PA6 excels in sliding and rolling applications thanks to its good wear resistance and damping behavior.

Can PA6 be laser-cut?

Although technically possible, milling or sawing is often more efficient due to potential discoloration or fumes when laser cutting.
